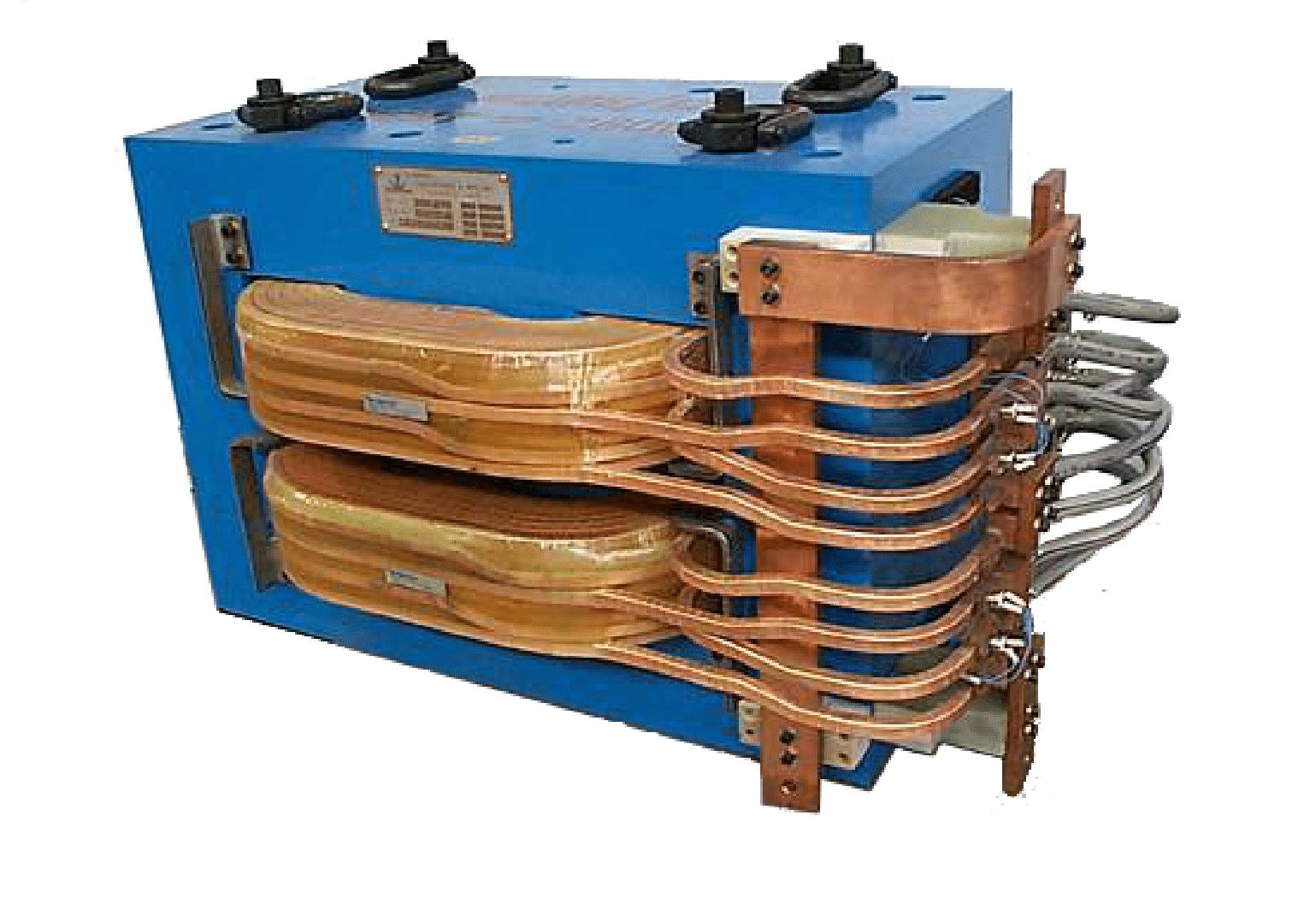

TRIUMF HEBT Dipole Magnet

  • Model #: DM-50.22
  • Last modification: Sep/13/2022


contact us about this product
%title% %title% %title%

Overview

Specifications

Dipole Type:

H-Frame

Pole Shape:

Rectangular (Rogowski)

Effective Length:

39.02 cm

Pole Gap:

5.0 cm

Maximum Field:

12.2 kG

Field Uniformity:

±3 x 10-4

Width of Good Field Region:

±3.5 cm

Width/Height -
Vacuum Chamber:

±5 cm, ±1.5 cm

Weight:

2,600 lbs

TRIUMF-licenced technology1

  1. Technology licensed from TRIUMF for world-wide distribution.
