Faraday Cup, 3 kW



contact us about this product
%title% %title% %title%

Overview

Pneumatically-actuated, water-cooled, Faraday Cup for Ø25 mm beams capable of 3 kW beampower.


Features
  • Measure charged particle beams up to 3 kW beam power, with up to 1 MeV particle energy
  • Secondary-electron suppression electrode
  • Water-cooled (de-ionized water required)
  • Beam current readback from both entrance collimator and Faraday Cup
  • Ø25 mm aperture, Ø55 max. beam size
  • Pneumatic actuation
  • Reed limit switch feedback for device position
  • Cylinder actuation speed adjustments


Download(s)
File Type Date Details
Specification Oct/21/2021 download
Stepfile Nov/4/2021 download Step File with F-Cup Extended
3D CAD Nov/4/2021 download Step File with F-Cup Retracted



Gallery

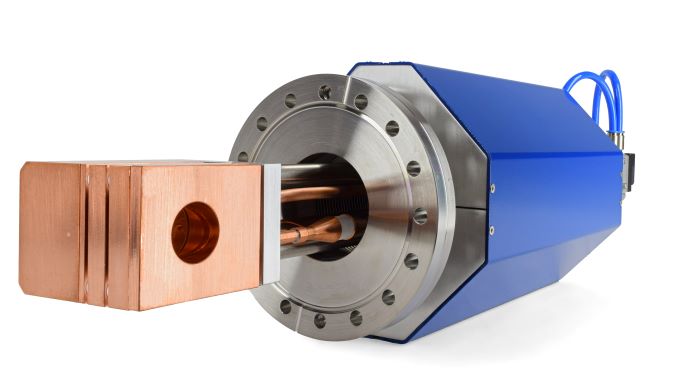

Faraday Cup, 3 kW

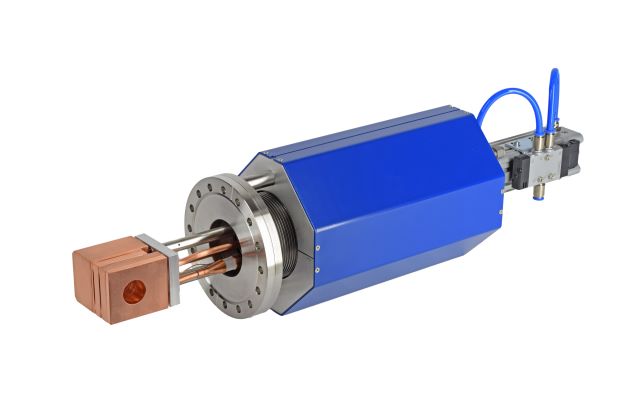

Faraday Cup, 3 kW

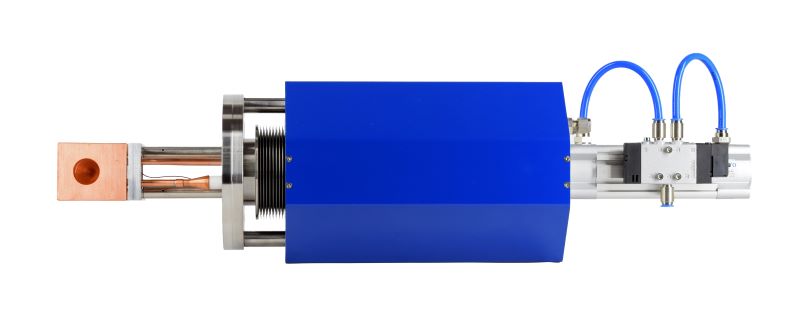

Faraday Cup, 3 kW

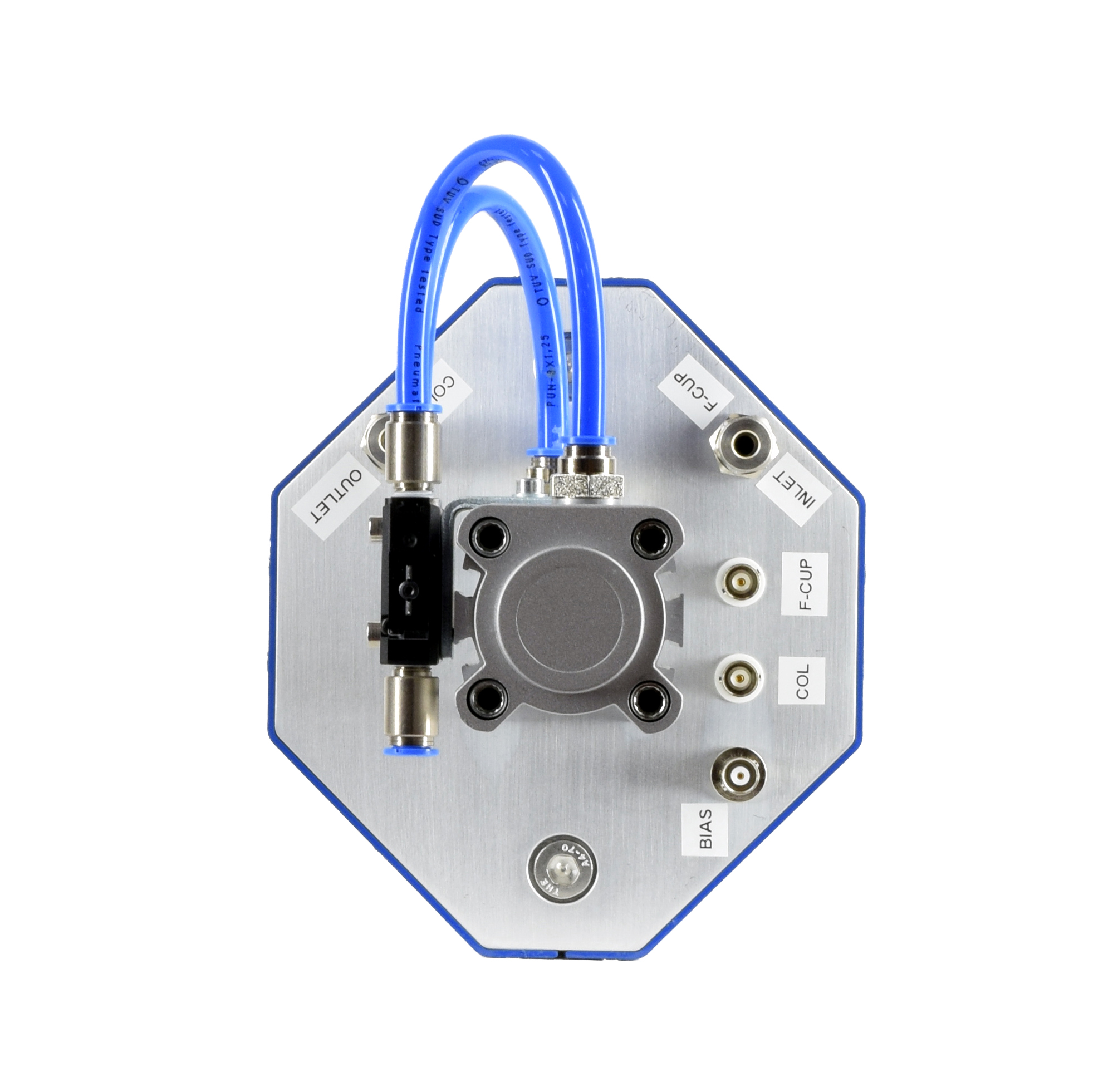

Faraday Cup, 3 kW

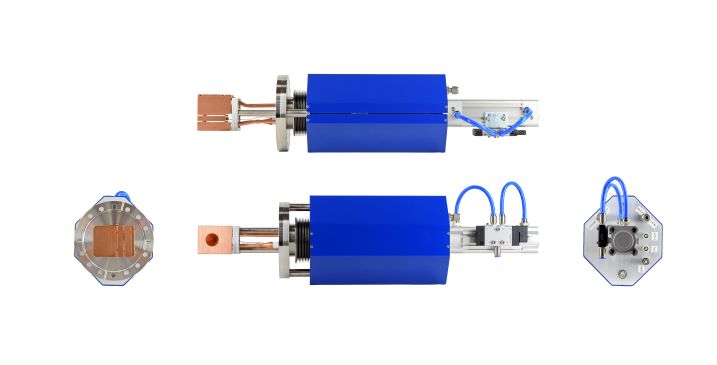

Faraday Cup, 3 kW

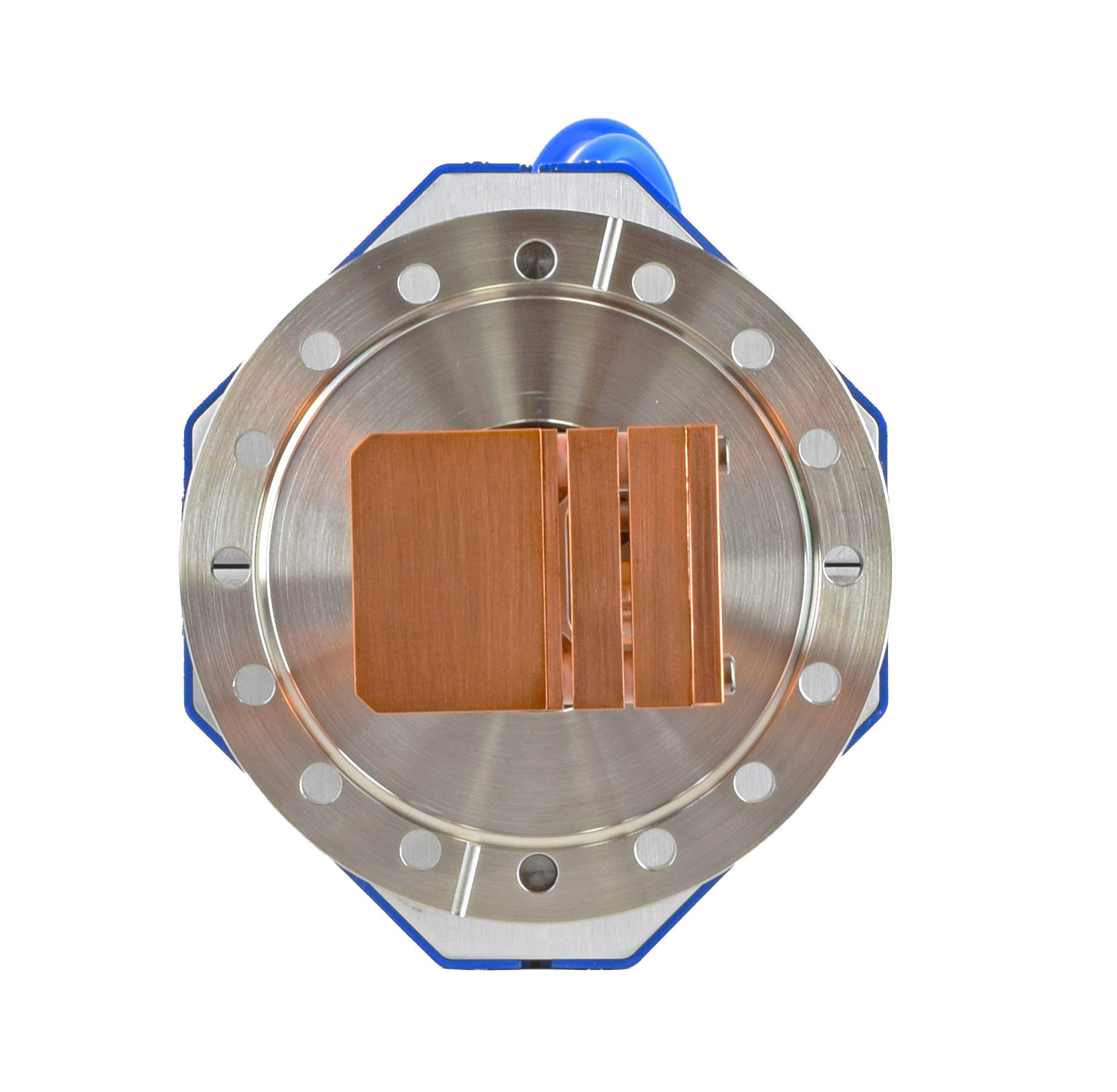

Faraday Cup, 3 kW

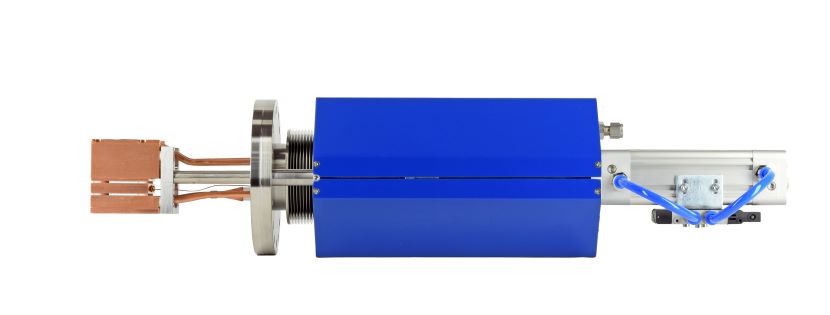

Faraday Cup, 3 kW



For more information, or to order an item please contact us at info@d-pace.com
