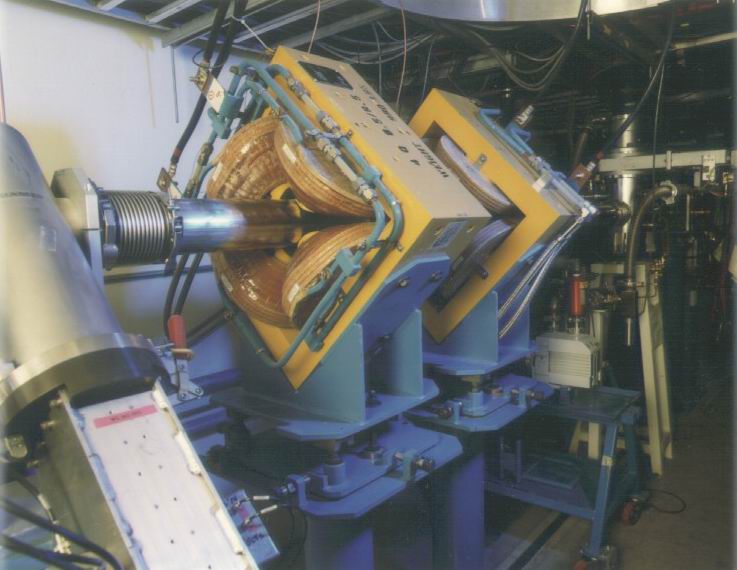

TRIUMF/ISAC BL2A Quadrupole Magnet
- Model #: QM-BL2A
- Last modification: Jun/9/2025
contact us about this product
The D-Pace standard 4.06"/103mm bore diameter quadrupole magnet for charged particle focusing
Specifications
|
Energy/Particle: |
500 MeV, Proton |
|
Maximum Field: |
8.50 kG pole-tip |
|
Effective Length: |
10.24 inches |
|
Pole Gap: |
4.060 inches |
|
Coils: |
Hollow Tube, Copper Conductor |
|
Weight: |
980 lbs |
TRIUMF-licenced technology1
- Technology licensed from TRIUMF for world-wide distribution.
