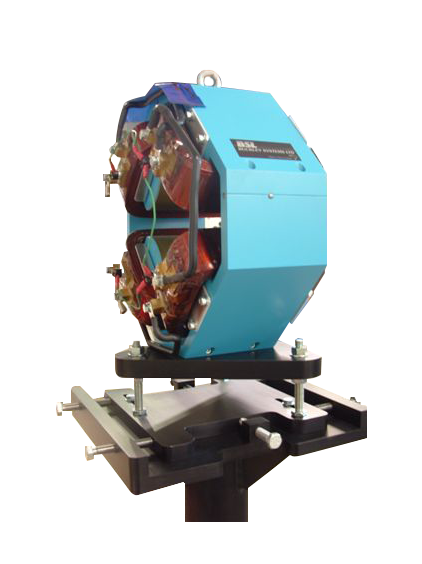

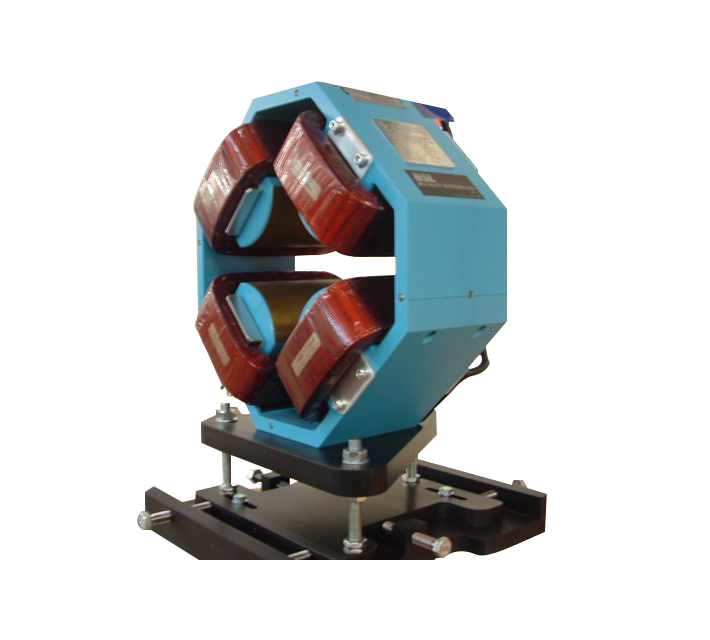

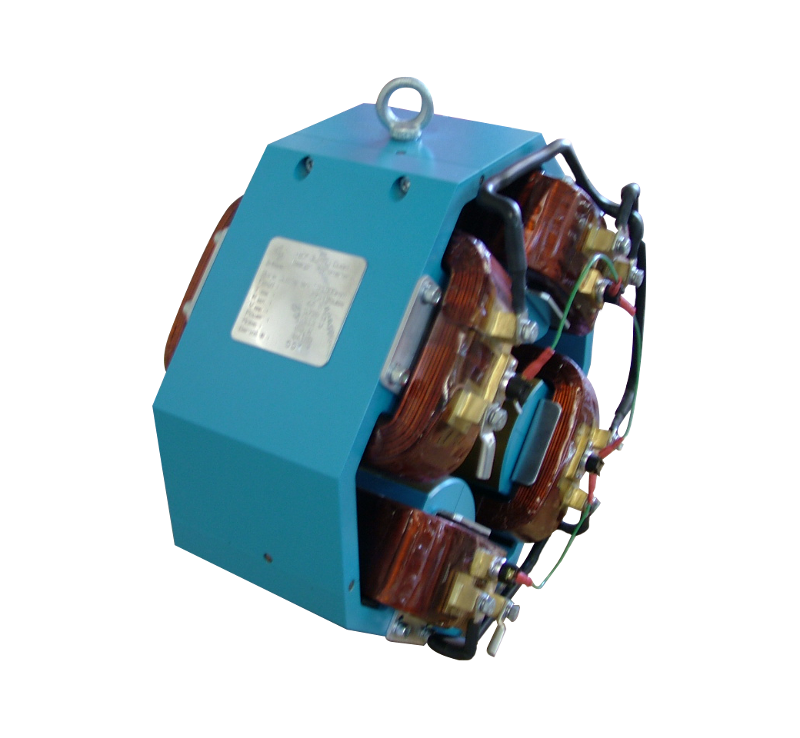

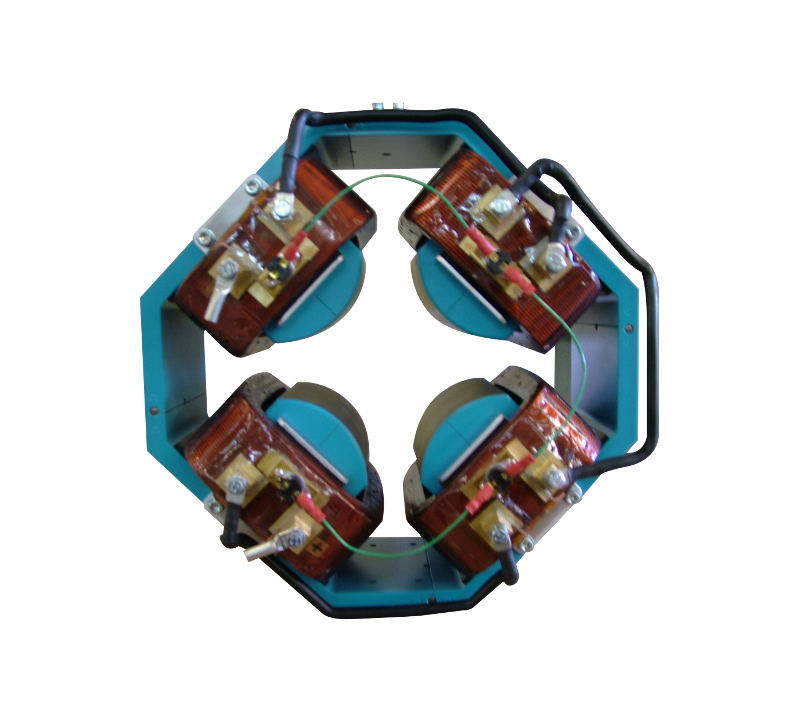

TRIUMF Half Bunny Quad
- Model #: QM-103.186
- Last modification: Jun/9/2025
contact us about this product
The D-Pace standard 4.05"/103 mm bore diameter quadrupole magnet for charged particle focusing
|
Magnet Type: |
Quadrupole |
|
Maximum Field: |
570 Gauss |
|
Bore Diameter: |
103 mm |
|
Pole Width: |
87.55 mm |
|
Pole Radius: |
59.225 mm |
|
Iron Length: |
135 mm |
|
Effective Length: |
186.5 mm |
|
Cooling: |
Ambient Air |
|
Nominal Power Supply: |
5A, 15V |
