Filament Powered Turnkey Proton Source System



contact us about this product
%title% %title% %title%

Overview

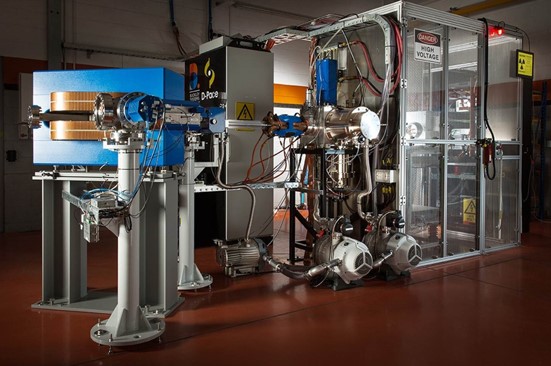

The ISV.F-070 Filament Ion Source system is a complete, turnkey ion source system featuring:

  • A TRIUMF-licensed filament ion source, DC, volume-cusp
  • Proton beam current yields up to 3 mA DC
  • Low maintenance with long filament lifetime
  • Negligible electrode wear due to the optimized ion optics and low emittance
  • Internal steering magnet enables beam alignment corrections
  • Includes suppression electrode to prevent back-streaming electrons

Features

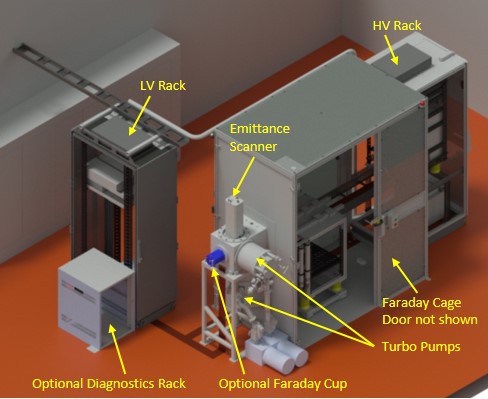

The system includes:

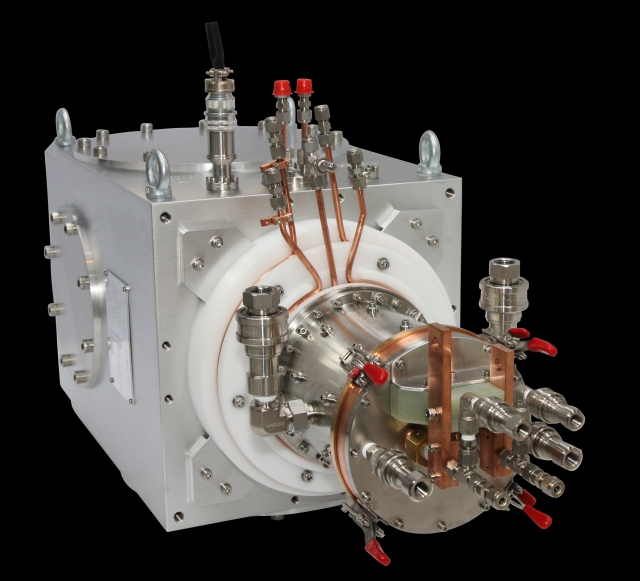

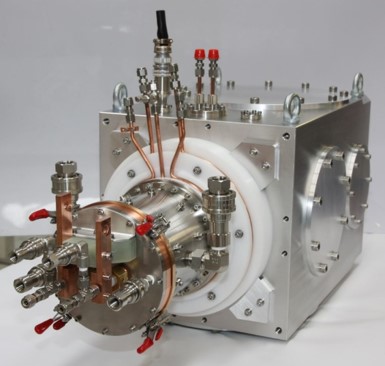

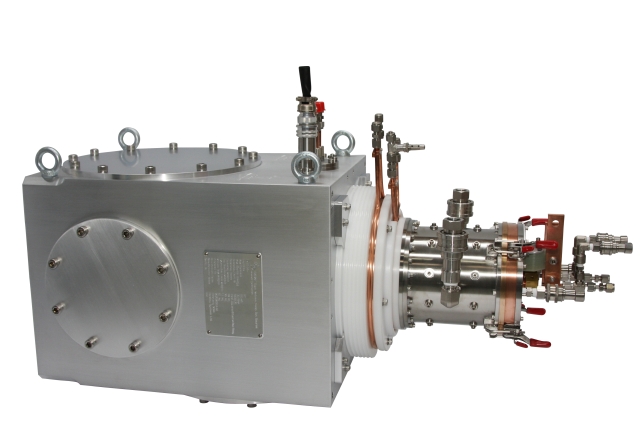

  • Ion source & vacuum box
  • Vacuum system & gauges
  • Power supplies, PLC controls & software
  • Low voltage and high voltage racks
  • 40 kV isolation transformer
  • Interlocks and HV grounding system
  • User interface & Ethernet-based remote controls
  • Ion source stand
  • Personnel access control interlocks
  • Water flow gauges and interlocks
  • Mass flow controller for feed gasses

Optional:

  • High-voltage Faraday cage/ enclosure
  • Water de-ionization and cooling system
  • Sliding Faraday cup
  • UniBEaM fiber optic beam profile monitor (technology licensed from University of Bern)
  • TRIUMF-licensed  emittance scanner
  • 1:500 mass spectrometer with slits


Download(s)
File Type Date Details
Specification Jul/4/2023 download



For more information, or to order an item please contact us at info@d-pace.com
