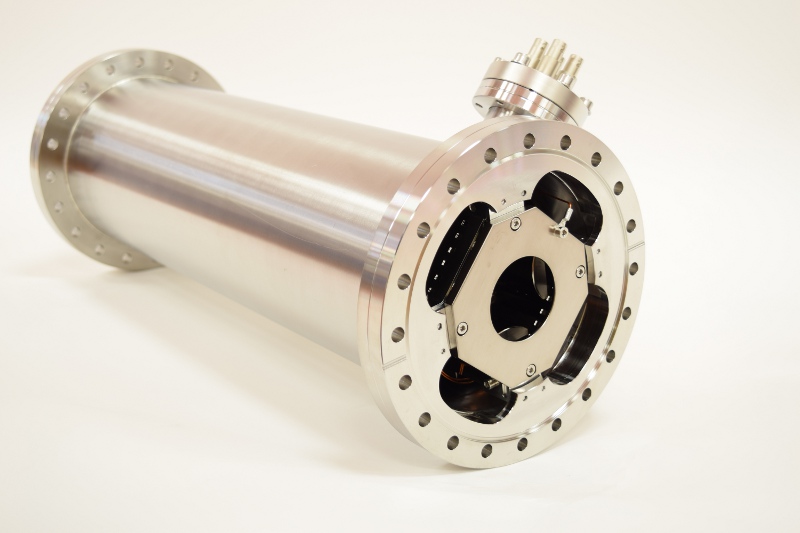

Electrostatic Quad Triplet, 50mm

  • Model #: QE 3.50
  • Last modification: Sep/21/2018
  • Downloads


contact us about this product
%title% %title% %title%

Overview

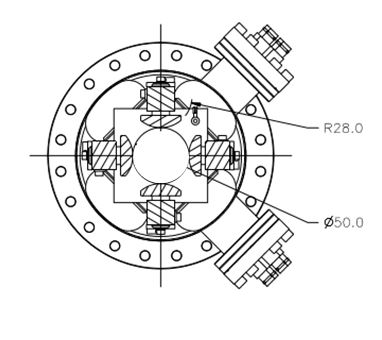

  • Pole aperture 50 mm
  • Pole isolation from ground ±1000V (±2000 V between opposite poles)
  • Grounded collimators upstream from each quad (quantity3)
  • 8” CF Flanges
  • Metal and ceramic seals
  • UHV options
  • Optional power supply, with six +/-1 kV bipolar outputs in single 2U 19” rack mount chassis



Download(s)
File Type Date Details
Specification pdf Sep/21/2018 download 216KB



For more information, or to order an item please contact us at info@d-pace.com
